Cisco AIR-CAP2702I-E-K9 802.11ac

Part numbers

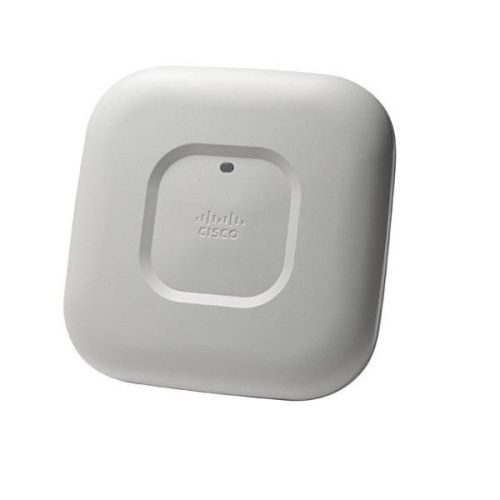

Cisco Aironet 2700i Access Point: Indoor environments, with internal antennas, Universal Regulatory Domain (UX)

●  AIR-AP2702I-UXK9: Dual-band, controller-based 802.11a/g/n/ac

●  AIR-AP2702I-UXK9C: Dual-band, controller-based 802.11a/g/n/ac (Configurable)

●  AIR-AP2702I-UXK910: Eco-pack (dual-band 802.11a/g/n/ac) 10 quantity access points

●  AIRAP2702I-UXK910C: Eco-pack (dual-band 802.11a/g/n/ac) 10 quantity access points (Configurable)

Cisco SMARTnet Total Care^™ Service for the Cisco Aironet 2700i Access Point with internal antennas, Universal Regulatory Domain (UX)

●  CON-SNT-AP2702IUX: SMARTnet 8x5xNBD for 2700i access point (dual-band 802.11a/g/n/ac)

●  CON-SNT-AP2702IUX x 10: SMARTnet 8x5xNBD for 10-quantity eco-pack 2700i access point (dual-band 802.11a/g/n/ac)

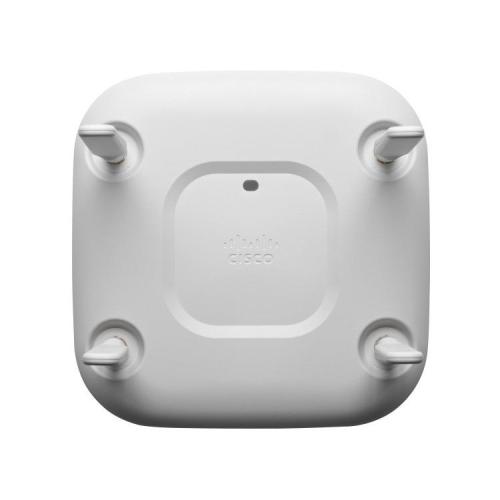

Cisco Aironet 2700e Access Point: Indoor, challenging environments, with external antennas, Universal Regulatory Domain (UX)

●  AIR-AP2702E-UXK9: Dual-band controller-based 802.11a/g/n/ac

●  AIR-AP2702E-UXK9: Dual-band controller-based 802.11a/g/n/ac (Configurable)

●  AIR-AP2702E-UXK910: Eco-pack (dual-band 802.11a/g/n/ac), 10 quantity access points

●  AIRAP2702E-UXK910C: Eco-pack (dual-band 802.11a/g/n/ac), 10 quantity access points (Configurable)

Cisco SMARTnet Total Care Service for the Cisco Aironet 2700e Access Point with external antennas, Universal Regulatory Domain (UX)

●  CON-SNT-AP2702EU: SMARTnet 8x5xNBD for 2700e access point (dual-band 802.11a/g/n/ac)

●  CON-SNT-AP2702EU x 10: SMARTnet 8x5xNBD for 1- quantity eco-pack 2700e access point (dual-band 802.11a/g/n/ac)

Cisco Aironet 2700i Access Point: Indoor environments, with internal antennas

●  AIR-CAP2702I-x-K9: Dual-band, controller-based 802.11a/g/n/ac

●  AIR-CAP2702I-xK910: Eco-pack (dual-band 802.11a/g/n/ac) 10 quantity access points

Cisco SMARTnet Total Care Service for the Cisco Aironet 2700i Access Point with internal antennas

●  CON-SNT- AIRCIxK9: SMARTnet 8x5xNBD for 2700i access point (dual-band 802.11a/g/n/ac)

●  CON-SNT- AIRCIxK9 x 10: SMARTnet 8x5xNBD for 10-quantity eco-pack 2700i access point (dual-band 802.11a/g/n/ac)

Cisco Aironet 2700e Access Point: Indoor, challenging environments, with external antennas

●  AIR-CAP2702E-x-K9: Dual-band controller-based 802.11a/g/n/ac

●  AIR-CAP2702E-xK910: Eco-pack (dual-band 802.11a/g/n/ac), 10 quantity access points

Cisco SMARTnet Total Care Service for the Cisco Aironet 2700e Access Point with external antennas

●  CON-SNT-AIRCExK9: SMARTnet 8x5xNBD for 2700e access point (dual-band 802.11a/g/n/ac)

●  CON-SNT-AIRCExK9 x 10: SMARTnet 8x5xNBD for 1- quantity eco-pack 2700e access point (dual-band 802.11a/g/n/ac)

Regulatory domains: (x = regulatory domain)

Customers are responsible for verifying approval for use in their individual countries. To verify approval and to>

Cisco Unified Wireless Network Software Release 7.6MR2 or later

Supported wireless LAN controllers

●  Cisco 2500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst^® 6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex^® 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco Virtual Wireless Controller

●  Cisco 5760 Wireless LAN Controller, Cisco Catalyst 3850 Series Switches, Cisco Catalyst 3650 Series Switches

802.11n version 2.0 (and related) capabilities

●  3x4 MIMO with three spatial streams

●  Maximal ratio combining (MRC)

●  802.11n and 802.11a/g beamforming

●  20- and 40-MHz channels

●  PHY data rates up to 450 Mbps (40 MHz with 5 GHz)

●  Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)

●  802.11 dynamic frequency selection (DFS)

●  Cyclic shift diversity (CSD) support

802.11ac Wave 1 capabilities

●  3x4 MIMO with three spatial streams

●  MRC

●  802.11ac beamforming

●  20-, 40-, and 80-MHz channels

●  PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz)

●  Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)

●  802.11 DFS

●  CSD support

Data rates supported

802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps

802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps

802.11n data rates on 2.4 GHz:

MCS Index^[1]

GI^[2] = 800 ns

GI = 400 ns

20-MHz Rate (Mbps)

20-MHz Rate (Mbps)

0

6.5

7.2

1

13

14.4

2

19.5

21.7

3

26

28.9

4

39

43.3

5

52

57.8

6

58.5

65

7

65

72.2

8

13

14.4

9

26

28.9

10

39

43.3

11

52

57.8

12

78

86.7

13

104

115.6

14

117

130

15

130

144.4

16

19.5

21.7

17

39

43.3

18

58.5

65

19

78

86.7

20

117

130

21

156

173.3

22

175.5

195

23

195

216.7

802.11ac data rates (5 GHz):

MCS Index^[3]

Spatial Streams

GI^[4] = 800ns

GI = 400ns

20-MHz Rate (Mbps)

40-MHz Rate (Mbps)

80-MHz Rate (Mbps)

20-MHz Rate (Mbps)

40-MHz Rate (Mbps)

80-MHz Rate (Mbps)

0

1

6.5

13.5

29.3

7.2

15

32.5

1

1

13

27

58.5

14.4

30

65

2

1

19.5

40.5

87.8

21.7

45

97.5

3

1

26

54

117

28.9

60

130

4

1

39

81

175.5

43.3

90

195

5

1

52

108

234

57.8

120

260

6

1

58.5

121.5

263.3

65

135

292.5

7

1

65

135

292.5

72.2

150

325

8

1

78

162

351

86.7

180

390

9

1

-

180

390

-

200

433.3

0

2

13

27

58.5

14.4

30

65

1

2

26

54

117

28.9

60

130

2

2

39

81

175.5

43.3

90

195

3

2

52

108

234

57.8

120

260

4

2

78

162

351

86.7

180

390

5

2

104

216

468

115.6

240

520

6

2

117

243

526.5

130

270

585

7

2

130

270

585

144.4

300

650

8

2

156

324

702

173.3

360

780

9

2

78

780

780

-

400

866.7

0

3

19.5

40.5

87.8

21.7

45

97.5

1

3

39

81

175.5

43.3

90

195

2

3

58.5

121.5

263.3

65

135

292.5

3

3

78

162

351

86.7

180

390

4

3

117

243

526.5

130

270

585

5

3

156

324

702

173.3

360

780

6

3

175.5

364.5

-

195

405

-

7

3

195

405

877.5

216.7

450

975

8

3

234

486

1053

260

540

1170

9

3

260

540

1170

288.9

600

1300

Frequency band and 20-MHz operating channels

A (A regulatory domain):

●  2.412 to 2.462 GHz; 11 channels

●  5.180 to 5.320 GHz; 8 channels

●  5.500 to 5.700 GHz; 8 channels

(excludes 5.600 to 5.640 GHz)

●  5.745 to 5.825 GHz; 5 channels

B (B regulatory domain):

●  2.412 to 2.462 GHz; 11 channels

●  5.180 to 5.320 GHz; 8 channels

●  5.500 to 5.720 GHz; 12 channels

●  5.745 to 5.825 GHz; 5 channels

C (C regulatory domain):

●  2.412 to 2.472 GHz; 13 channels

●  5.745 to 5.825 GHz; 5 channels

D (D regulatory domain):

●  2.412 to 2.462 GHz; 11 channels

●  5.180 to 5.320 GHz; 8 channels

●  5.745 to 5.865 GHz; 7 channels

E (E regulatory domain):

●  2.412 to 2.472 GHz; 13 channels

●  5.180 to 5.320 GHz; 8 channels

●  5.500 to 5.700 GHz; 8 channels

(excludes 5.600 to 5.640 GHz)

F (F regulatory domain):

●  2.412 to 2.472 GHz; 13 channels

●  5.180 to 5.320 GHz; 8 channels

●  5.500 to 5.700 GHz; 8 channels

(excludes 5.600 to 5.640 GHz)

H (H regulatory domain):

●  2.412 to 2.472 GHz; 13 channels

●  5.150 to 5.350 GHz; 8 channels

●  5.745 to 5.825 GHz; 5 channels

I (I regulatory domain):

●  2.412 to 2.472 GHz; 13 channels

●  5.180 to 5.320 GHz; 8 channels

K (K regulatory domain):

●  2.412 to 2.472 GHz; 13 channels

●  5.180 to 5.320 GHz; 8 channels

●  5.500 to 5.620 GHz; 7 channels

●  5.745 to 5.805 GHz; 4 channels

N (N regulatory domain):

●  2.412 to 2.462 GHz; 11 channels

●  5.180 to 5.320 GHz; 8 channels

●  5.745 to 5.825 GHz; 5 channels

Q (Q regulatory domain):

●  2.412 to 2.472 GHz; 13 channels

●  5.180 to 5.320 GHz; 8 channels

●  5.500 to 5.700 GHz; 11 channels

R (R regulatory domain):

●  2.412 to 2.472 GHz; 13 channels

●  5.180 to 5.320 GHz; 8 channels

●  5,660 to 5,805 GHz; 7 channels

S (S regulatory domain):

●  2.412 to 2.472 GHz; 13 channels

●  5.180 to 5.320 GHz; 8 channels

●  5.500 to 5.700 GHz;, 11 channels

●  5.745 to 5.825 GHz; 5 channels

T (T regulatory domain):

●  2.412 to 2.462 GHz; 11 channels

●  5.280 to 5.320 GHz; 3 channels

●  5.500 to 5.700 GHz; 8 channels

(excludes 5.600 to 5.640 GHz)

●  5.745 to 5.825 GHz; 5 channels

Z (Z regulatory domain):

●  2.412 to 2.462 GHz; 11 channels

●  5.180 to 5.320 GHz; 8 channels

●  5.500 to 5.700 GHz; 8 channels

(excludes 5.600 to 5.640 GHz)

●  5.745 to 5.825 GHz; 5 channels

Note: Customers are responsible for verifying approval for use in their individual countries. To verify approval and to>

2.4 GHz

●  802.11b/g:

◦   20 MHz: 3

●  802.11n:

◦   20 MHz: 3

5 GHz

●  802.11a:

◦   20 MHz: 21

●  802.11n:

◦   20 MHz: 21

◦   40 MHz: 9

●  802.11ac:

◦   20 MHz: 21

◦   40 MHz: 9

◦   80 MHz: 5

Note: This varies by regulatory domain. Refer to the product documentation for specific details for each regulatory domain.

Receive sensitivity

●  802.11b (CCK)

◦   -102 dBm @ 1 Mbps

◦   -100 dBm @ 2 Mbps

◦   -93 dBm @ 5.5 Mbps

◦   -90 dBm @ 11 Mbps

●  802.11g (non HT20)

◦   -93 dBm @ 6 Mbps

◦   -93 dBm @ 9 Mbps

◦   -93 dBm @ 12 Mbps

◦   -92 dBm @ 18 Mbps

◦   -89 dBm @ 24 Mbps

◦   -86 dBm @ 36 Mbps

◦   -81 dBm @ 48 Mbps

◦   -80 dBm @ 54 Mbps

●  802.11a (non HT20)

◦   -93 dBm @ 6 Mbps

◦   -93 dBm @ 9 Mbps

◦   -93 dBm @ 12 Mbps

◦   -92 dBm @ 18 Mbps

◦   -89 dBm @ 24 Mbps

◦   -86 dBm @ 36 Mbps

◦   -81 dBm @ 48 Mbps

◦   -80 dBm @ 54 Mbps

2.4 GHz

●  802.11n (HT20)

◦   -93 dBm @ MCS0

◦   -93 dBm @ MCS1

◦   -91 dBm @ MCS2

◦   -88 dBm @ MCS3

◦   -85 dBm @ MCS4

◦   -80 dBm @ MCS5

◦   -79 dBm @ MCS6

◦   -78 dBm @ MCS7

◦   -93 dBm @ MCS8

◦   -91 dBm @ MCS9

◦   -89 dBm @ MCS10

◦   -86 dBm @ MCS11

◦   -83 dBm @ MCS12

◦   -79 dBm @ MCS13

◦   -77 dBm @ MCS14

◦   -76 dBm @ MCS15

◦   -93 dBm @ MCS16

◦   -90 dBm @ MCS17

◦   -88 dBm @ MCS18

◦   -84 dBm @ MCS19

◦   -82 dBm @ MCS20

◦   -77 dBm @ MCS21

◦   -76 dBm @ MCS22

◦   -74 dBm @ MCS23

5 GHz

●  802.11n (HT20)

◦   -93 dBm @ MCS0

◦   -93 dBm @ MCS1

◦   -91 dBm @ MCS2

◦   -88 dBm @ MCS3

◦   -85 dBm @ MCS4

◦   -81 dBm @ MCS5

◦   -79 dBm @ MCS6

◦   -78 dBm @ MCS7

◦   -93 dBm @ MCS8

◦   -91 dBm @ MCS9

◦   -89 dBm @ MCS10

◦   -86 dBm @ MCS11

◦   -83 dBm @ MCS12

◦   -78 dBm @ MCS13

◦   -77 dBm @ MCS14

◦   -75 dBm @ MCS15

◦   -93 dBm @ MCS16

◦   -90 dBm @ MCS17

◦   -88 dBm @ MCS18

◦   -85 dBm @ MCS19

◦   -82 dBm @ MCS20

◦   -77 dBm @ MCS21

◦   -76 dBm @ MCS22

◦   -75 dBm @ MCS23

5 GHz

●  802.11n (HT40)

◦   -90 dBm @ MCS0

◦   -89 dBm @ MCS1

◦   -88 dBm @ MCS2

◦   -85 dBm @ MCS3

◦   -82 dBm @ MCS4

◦   -77 dBm @ MCS5

◦   -76 dBm @ MCS6

◦   -75 dBm @ MCS7

◦   -90 dBm @ MCS8

◦   -88 dBm @ MCS9

◦   -86 dBm @ MCS10

◦   -83 dBm @ MCS11

◦   -79 dBm @ MCS12

◦   -75 dBm @ MCS13

◦   -74 dBm @ MCS14

◦   -72 dBm @ MCS15

◦   -89 dBm @ MCS16

◦   -87 dBm @ MCS17

◦   -85 dBm @ MCS18

◦   -81 dBm @ MCS19

◦   -79 dBm @ MCS20

◦   -74 dBm @ MCS21

◦   -73 dBm @ MCS22

◦   -71 dBm @ MCS23

802.11ac Receive Sensitivity

802.11ac (non HT80)

●  -86 dBm @ 6 Mbps

●  -75 dBm @ 54 Mbps

MCS Index^[5]

Spatial Streams

VHT20

VHT40

VHT80

VTH20-STBC

VHT40-STBC

VHT80-STBC

0

1

-92 dBm

-89 dBm

-85 dBm

-92 dBm

-89 dBm

-85 dBm

8

1

-74 dBm

-74 dBm

9

1

-69 dBm

-66 dBm

-69 dBm

-66 dBm

0

2

-92 dBm

-88 dBm

-85 dBm

8

2

-72 dBm

9

2

-67 dBm

-63 dBm

0

3

-92 dBm

-88 dBm

-84 dBm

9

3

-68 dBm

-66 dBm

-62 dBm

Maximum transmit power

2.4 GHz

●  802.11b

◦   22 dBm, 3 antennas

●  802.11g

◦   22 dBm, 3 antennas

●  802.11n (HT20)

◦   22 dBm, 3 antennas

5 GHz

●  802.11a

◦   23 dBm, 4 antennas

●  802.11n (HT20)

◦   23 dBm, 4 antennas

●  802.11n (HT40)

◦   23 dBm, 4 antennas

●  802.11ac

◦   non-HT80: 23 dBm, 4 antennas

◦   VHT20 23 dBm, 4 antennas

◦   VHT40: 23 dBm, 4 antennas

◦   VHT80: 23 dBm, 4 antennas

◦   VHT20-STBC: 23 dBm, 4 antennas

◦   VHT40-STBC: 23 dBm, 4 antennas

◦   VHT80-STBC: 23 dBm, 4 antennas

Note: The maximum power setting will vary by channel and according to individual country regulations. Refer to the product documentation for specific details.

Available transmit power settings

2.4 GHz

●  22 dBm (160 mW)

●  19 dBm (80 mW)

●  16 dBm (40 mW)

●  13 dBm (20 mW)

●  10 dBm (10 mW)

●  7 dBm (5 mW)

●  4 dBm (2.5 mW)

●  2 dBm (1.25 mW)

5 GHz

●  23 dBm (200 mW)

●  20 dBm (100 mW)

●  17 dBm (50 mW)

●  14 dBm (25 mW)

●  11 dBm (12.5 mW)

●  8 dBm (6.25 mW)

●  5 dBm (3.13 mW)

●  2 dBm (1.56 mW)

Note: The maximum power setting will vary by channel and according to individual country regulations. Refer to the product documentation for specific details.

Integrated antenna

●  2.4 GHz, gain 4 dBi, internal omni, horizontal beamwidth 360°

●  5 GHz, gain 4 dBi, internal omni, horizontal beamwidth 360°

External antenna (sold separately)

●  Certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz)

●  Cisco offers the industry's broadest selection ofantennas, delivering optimal coverage for a variety of deployment scenarios

Interfaces

●  2x10/100/1000BASE-T autosensing (RJ-45)

●  Management console port (RJ-45)

Indicators

●  Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors

Dimensions

(W x L x H)

●  Access point (without mounting bracket): 8.69 x 8.69 x 1.99 in. (22.1 x 22.1 x 5.1 cm)

Weight

●  2.2 lb (1.0 kg)

Environmental

Cisco Aironet 2702i

●  Nonoperating (storage) temperature: −22° to 158°F (-30° to 70°C)

●  Nonoperating (storage)>

●  512 MB DRAM

●  64 MB flash

Input power requirements

●  AP2700: 44 to 57 VDC

●  Power supply and power injector: 100 to 240 VAC; 50 to 60 Hz

Power draw

●  AP2700: 15W

Note: When deployed using a Power over Ethernet (PoE) specification, the power drawn from the power sourcing equipment will be higher by some amount dependent on the length of the interconnecting cable.

Powering options

●  802.3at PoE+

●  Enhanced PoE

●  Cisco AP2700 power injectors (AIR-PWRINJ4=)

●  Cisco AP2700 local power supply (AIR-PWR-B=)

Note: If 802.3af PoE is the source of power, the access point will dynamically shift from 3x4 to 3x3 and come up under PoE.

Warranty

Limited lifetime hardware warranty

Compliance standards

◦   UL 60950-1

◦   CAN/CSA-C22.2 No. 60950-1

◦   UL 2043

◦   IEC 60950-1

◦   EN 60950-1

◦   EN 50155

●  Radio approvals:

◦   FCC Part 15.247, 15.407

◦   RSS-210 (Canada)

◦   EN 300.328, EN 301.893 (Europe)

◦   ARIB-STD 66 (Japan)

◦   ARIB-STD T71 (Japan)

◦   EMI and susceptibility (Class B)

◦   FCC Part 15.107 and 15.109

◦   ICES-003 (Canada)

◦   VCCI (Japan)

◦   EN 301.489-1 and -17 (Europe)

◦   EN 60601-1-2 EMC requirements for the Medical Directive 93/42/EEC

●  IEEE standards:

◦   IEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d

◦   IEEE 802.11ac Draft 5

●  Security:

◦   802.11i, Wi-Fi Protected Access 2 (WPA2), WPA

◦   802.1X

◦   Advanced Encryption Standards (AES), Temporal Key Integrity Protocol (TKIP)

●  Extensible Authentication Protocol (EAP) types:

◦   EAP-Transport Layer Security (TLS)

◦   EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2)

◦   Protected EAP (PEAP) v0 or EAP-MSCHAPv2

◦   EAP-Flexible Authentication via Secure Tunneling (FAST)

◦   PEAP v1 or EAP-Generic Token Card (GTC)

◦   EAP-Subscriber Identity Module (SIM)

●  Multimedia:

◦   Wi-Fi Multimedia (WMM)

●  Other:

◦   FCC Bulletin OET-65C

◦   RSS-102
