Bo mạch chủ ASROCK Fatal1ty B250 Gaming K4

Mô tả ngắn

• aming ArmorPower- Hi-Density Power Connectors (24 pin and 8 pin)Memory- 15μ Gold Contact in DIMM SlotsVGA Card- 15μ Gold Contact in VGA PCIe Slot (PCIE2)Internet- Intel® LANCooling- XXL Aluminum Alloy HeatsinkAudio- Creative Sound Blaster™ Cinema 3
• Unique FeatureASRock Super Alloy- XXL Aluminum Alloy Heatsink- Premium 40A Power Choke- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)- I/O Armor- Matte Black PCB- High Density Glass Fabric PCBASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) TechnologyASRock Steel SlotsASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)ASRock Full Spike ProtectionASRock Live Update & APP Shop
• CPU- Supports 7th and 6th Generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® Processors (Socket 1151)- Digi Power design- 8 Power Phase design- Supports Intel® Turbo Boost 2.0 Technology
• Chipset- Intel® B250
• Memory- Dual Channel DDR4 Memory Technology- 4 x DDR4 DIMM Slots- Supports DDR4 2400/2133 non-ECC, un-buffered memory*- Supports ECC UDIMM memory modules (operate in non-ECC mode)- Max. capacity of system memory: 64GB**- Supports Intel® Extreme Memory Profile (XMP) 2.0- 15μ Gold Contact in DIMM Slots *7th Gen Intel® CPU supports DDR4 up to 2400; 6th Gen Intel® CPU supports DDR4 up to 2133.**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
• BIOS- 128Mb AMI UEFI Legal BIOS with multilingual GUI support- ACPI 6.0 Compliant wake up events- SMBIOS 2.7 Support- CPU, GT_CPU, DRAM, VPPM, PCH 1.0V, VCCIO, VCCST, VCCSA, VCCPLL Voltage Multi-adjustment
• Graphics- Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel®InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics- Gen9 LP, DX11.3, DX12- HWA Encode/Decode: VP8, HEVC 8b, VP9, HEVC 10b (For 7th Gen Intel® CPU)- HWA Encode/Decode: VP8, HEVC 8b; GPU/SWEncode/Decode: VP9, HEVC 10b (For 6th Gen Intel® CPU)- Max. shared memory 1024MB**- Three graphics output options: D-Sub, DVI-D and HDMI- Supports Triple Monitor- Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)- Supports HDCP with DVI-D and HDMI Ports- Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports *Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.**The size of maximum shared memory may vary from different operating systems.***Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit.****Intel® InTru™ 3D is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit.
• Audio- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)- Premium Blu-ray Audio support- Supports Surge Protection (ASRock Full Spike Protection)- Nichicon Fine Gold Series Audio Caps- 120dB SNR DAC with Differential Amplifier- TI® NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)- Pure Power-In- Direct Drive Technology- PCB Isolate Shielding- Impedance Sensing on Front Out port- Individual PCB Layers for R/L Audio Channel- AURA RGB LED- Gold Audio Jacks- 15μ Gold Audio Connector- Supports Creative Sound Blaster™ Cinema 3
• LAN- Gigabit LAN 10/100/1000 Mb/s- Giga PHY Intel® I219V- Supports Wake-On-LAN- Supports Lightning/ESD Protection (ASRock Full Spike Protection)- Supports Energy Efficient Ethernet 802.3az- Supports PXE

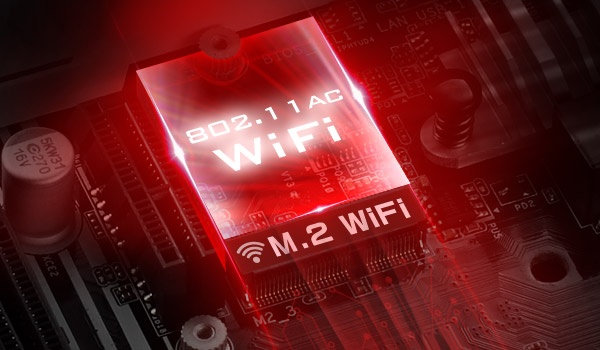

• Slots- 2 x PCI Express 3.0 x16 Slots (PCIE2: x16 mode; PCIE4: x4 mode)*- 4 x PCI Express 3.0 x1 Slots (Flexible PCIe)*- Supports AMD Quad CrossFireX™ and CrossFireX™- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module**- 15μ Gold Contact in VGA PCIe Slot (PCIE2) *Supports NVMe SSD as boot disksIf PCIE5 or PCIE6 is occupied, PCIE4 will run at x2 mode.**If M2_3 is occupied, PCIE3 will be disabled.

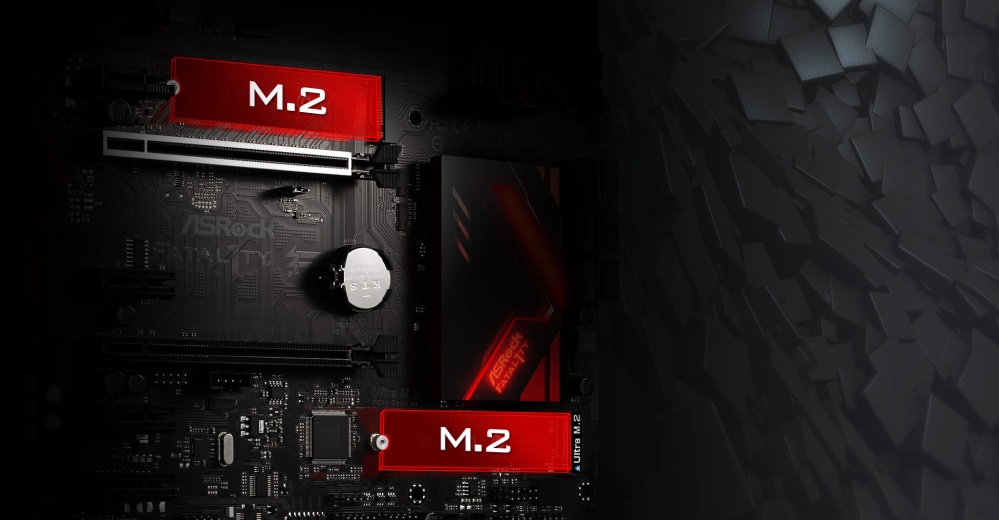

• Storage- 6 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug*- 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**- 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)** *If M2_1 is occupied by a SATA-type M.2 device, SATA_5 will be disabled.If M2_2 is occupied by a SATA-type M.2 device, SATA_0 will be disabled.**Supports ASRock U.2 KitSupports Intel® Optane™ Technology (M2_1 only)Supports NVMe SSD as boot disks
• Connector- 1 x COM Port Header- 1 x TPM Header- 1 x Chassis Intrusion Header- 1 x Power LED and Speaker Header- 1 x AURA RGB LED Header*- 1 x CPU Fan Connector (4-pin)**- 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)- 1 x Chassis Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)- 1 x Front Panel Audio Connector (15μ Gold Audio Connector)- 1 x Thunderbolt™ AIC Connector (5-pin)- 1 x Thunderbolt™ AIC Connector (10-pin)****- 3 x USB 2.0 Headers (Support 5 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))- 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) *Supports up to 12V/3A, 36W LED Strip.**The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.***The Chassis Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power.CHA_FAN2 can auto detect if 3-pin or 4-pin fan is in use.****Only one Thunderbolt™ AIC Card is supported.
• Rear Panel I/O- 2 x Antenna Ports- 1 x PS/2 Mouse/Keyboard Port- 1 x D-Sub Port- 1 x DVI-D Port- 1 x HDMI Port- 1 x Optical SPDIF Out Port- 1 x USB 2.0 Port (Supports ESD Protection (ASRock Full Spike Protection))- 1 x Fatal1ty Mouse Port (USB 2.0) (Supports ESD Protection (ASRock Full Spike Protection))- 3 x USB 3.0 Type-A Ports (Supports ESD Protection (ASRock Full Spike Protection))- 1 x USB 3.0 Type-C Port (Supports ESD Protection (ASRock Full Spike Protection))- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
• Software and UEFISoftware- ASRock AURA RGB LED- ASRock Key Master- ASRock APP Charger- ASRock XFast LAN*UEFI- ASRock EZ Mode- ASRock Full HD UEFI- ASRock My Favorites in UEFI- ASRock Instant Flash- ASRock Internet Flash- ASRock Crashless BIOS- ASRock UEFI Tech Service *These utilities can be downloaded from ASRock Live Update & APP Shop.
• Support CD- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
• Accessories- Quick Installation Guide, Support CD, I/O Shield- 2 x SATA Data Cables- 3 x Screws for M.2 Sockets
• Hardware Monitor- Temperature Sensing: CPU, Chassis, Chassis Optional/Water Pump Fans- Fan Tachometer: CPU, Chassis, Chassis Optional/Water Pump Fans- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis, Chassis Optional/Water Pump Fans- Fan Multi-Speed Control: CPU, Chassis, Chassis Optional/Water Pump Fans- CASE OPEN detection- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM, PCH 1.0V, VCCSA, VCCST
• Form Factor- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
• OS- Microsoft® Windows® 10 64-bit (For 7th Gen Intel® CPU)- Microsoft® Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit (For 6th Gen Intel® CPU)* *To install Windows® 7 OS, a modified installation disk with xHCI drivers packed into the ISO file is required. Please check our User Manual for more detailed instructions.For the updated Windows® 10 driver, please visit ASRock's website for details.
• Certifications- FCC, CE, WHQL- ErP/EuP ready (ErP/EuP ready power supply is required)
